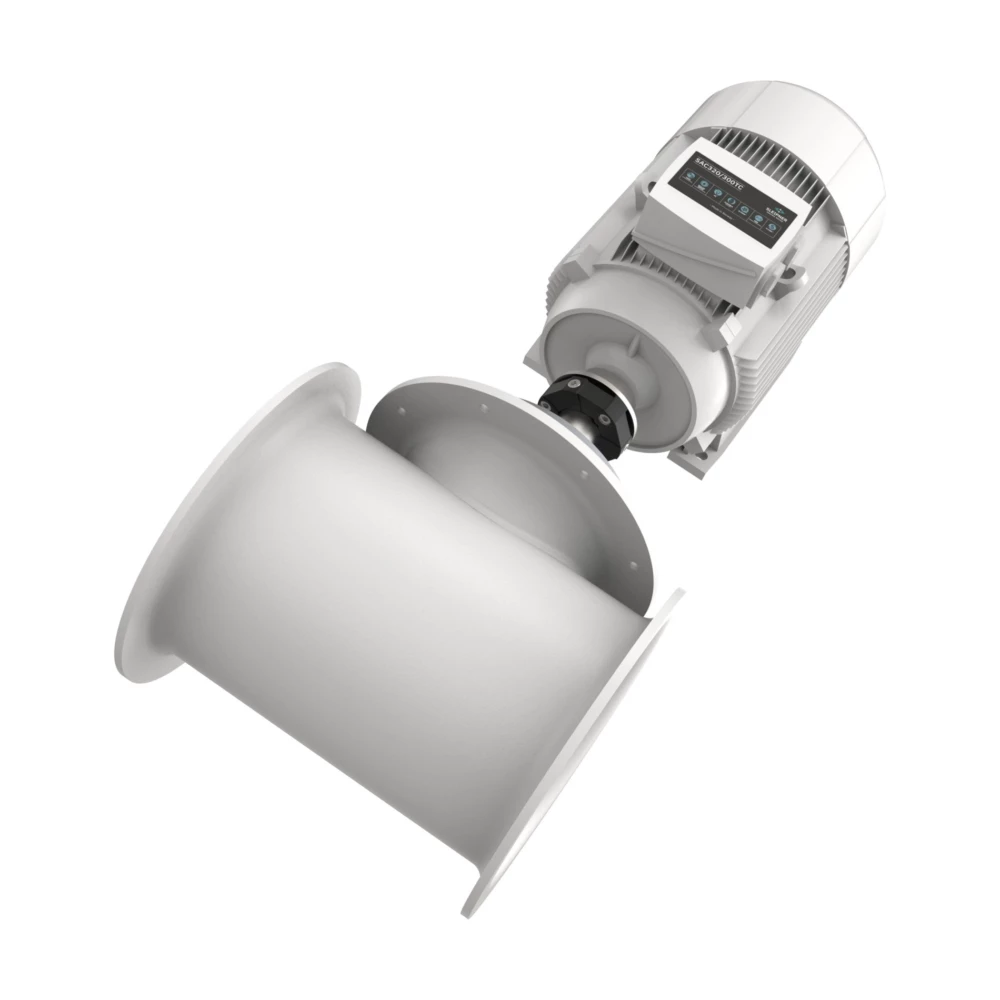

Side-Power AC Thruster Diameter 300mm 230V 320/280kg Horizontal Install

Properties

FLEXIBLE INSTALLATION

Sidepower’s Thrusters are designed to allow installation at any angle on the tunnel and the motor at various rotations on the bracket. The installation flexibility for Sidepower’s thruster systems is created to work with the space you have! not the space you need.

AC ELECTRICAL CURRENT

Powered by alternating current.

FLEXIBLE COUPLING

Flexible coupling between electronic motor and driveshaft protects both the electronic motor and gear systems if the propeller jams or obstructs.

S-LINK

S-Link is a CAN-based control system with full intelligent communication between all units in the system, much like a computer network.

Features:

• Round, compact and waterproof connectors with unique keying and color coding to avoid faulty hookup
• Unlimited number of commands or information transferred on a single cable
• User feedback on the panel
• Intelligent troubleshooting

PRO – VARIABLE SPEED CONTROL

A PRO thruster system with variable speed control allows for more precise handling of the boat in all conditions, applying only the necessary power needed to complete your maneuver confidently.

By limiting the power under normal weather conditions, noise levels are significantly reduced. The system also includes a practical hold-function in a twin thruster system. With a single press of a button, the bow and stern thruster will keep you alongside the docks – making docking truly a one-person job. PRO thrusters are the best choice for joystick interaction.

A PRO system contains three main elements – a control panel, a power control unit, and a DC electric thruster – all tied together with the S-link control system. All mechanical and main electric parts are from the well-proven thruster range produced by Sleipner for many years.

All of Sleipner’s 12 and 24 volt DC electric thrusters can be enabled for variable speed control by authorized Sleipner service personnel, even past models.

GALVANIC SEPARATION

The gear house and drive legs are fully galvanically isolated/separated from the electric motor and motor bracket. This ensures that even if there is an accidental short circuit or a current leak for other reasons, the immersed parts are not affected as they could be with direct electric contact.

Features:

• Achieved by composite bushings around the bolts and beneath the washers and a bushing in the motor bracket electrically isolating the drive housing from the motor bracket.
• Available on DC electric models with flexible couplers only, where the flexible coupler provides galvanic separation of the motor and gearleg shaft.

SEALED DRIVE LUBRICATION

Sealed gearleg with long-life ‘mechanical’ seal where highly polished ceramic and carbon surfaces form the only moving sealing surfaces, ensuring protection against damaging water intrusion into the gear leg. Pre-filled with special gear oil for lifetime lubrication.

Features:

• ‘Mechanical’ seals with surfaces of ceramic and carbon for ultimate security against water intrusion

Q-PROP

The new 5 blade special skew propellers are the result of over 2 years of development work and thousands of tests. They have been designed to reduce the noise level, while maintaining the exceptional efficiency of the old 4 blade Sleipner propellers. This goal was achieved, andSidepower even chose to make them a little bit more aggressive on some models, increasing the thrust on some thrusters about 5%. Please see individual information on each new thruster for more details.

Features:

• Noise reductions of up to 75% measured in controlled environments
• The expected and tested normal noise reduction in average installations: 20-40%
• Will be delivered on all Sleipner models except models with 300 mm and 385 mm tunnel diameter
• Upgrade kits are available for most SP series thrusters with special adaptors

TWIN COUNTER-ROTATING PROPELLERS

Two counter-rotating propellers can give the most thrust at a good performance ratio in a minimal tunnel diameter. This system is used in Sidepower’s larger thrusters for maximum power. The TC models are the favourite thrusters among leading boatbuilders for their high-end yachts.

Specifications:

Power	Value
Operating Power	Electric
Power Requirement	230V
Power Output	21kW / 27hp
Max. Thrust	320kg / 705lbs
Continous Thrust	280kg / 617lbs
Operational Running Limit (min)	continous

Operational Intention	Value
Ideal Vessel Class	Commercial vessel, Motor boat, Sail boat
Ideal Vessel Size	17-31m / 55-100ft
Bow Capability	Yes
Stern Capability	Yes
Retractable Capability	No
External Mounting Capability	No
Tunnel Capability	Yes

Measurements	Value
(H) Height	703mm / 27.7in
(L) Length	347mm / 13.7in
(W) Width	262mm / 10.3in
(ID) Internal Diameter	300mm / 11.8in
(WD) Water Depth	450mm / 17.7in
(TL) Recommended Tunnel Length	550mm / 21.7in
(TL min.) Minimum Tunnel Length	300mm / 11.8in
(T min.) Minimum Tunnel Wall Thickness	10mm / 0.4in
(T max.) Maximum Tunnel Wall Thickness	10mm / 0.4in
