Side-Power Q-Prop Thruster Propeller Composite Diameter 185/ 5 Bl.

Properties

PATENTED DESIGN

At Sleipner,Sidepower continually reinvest to develop and offer the latest technology in marine advancements. Often there is a void in the marine industry for a product to goes beyond the current market technology. ThereforeSidepower purposely develop and design innovative ways to not follow the industry but lead with revolutionary products. Patented products are unique one-of-a-kind designs available and sold exclusively by Sleipner.

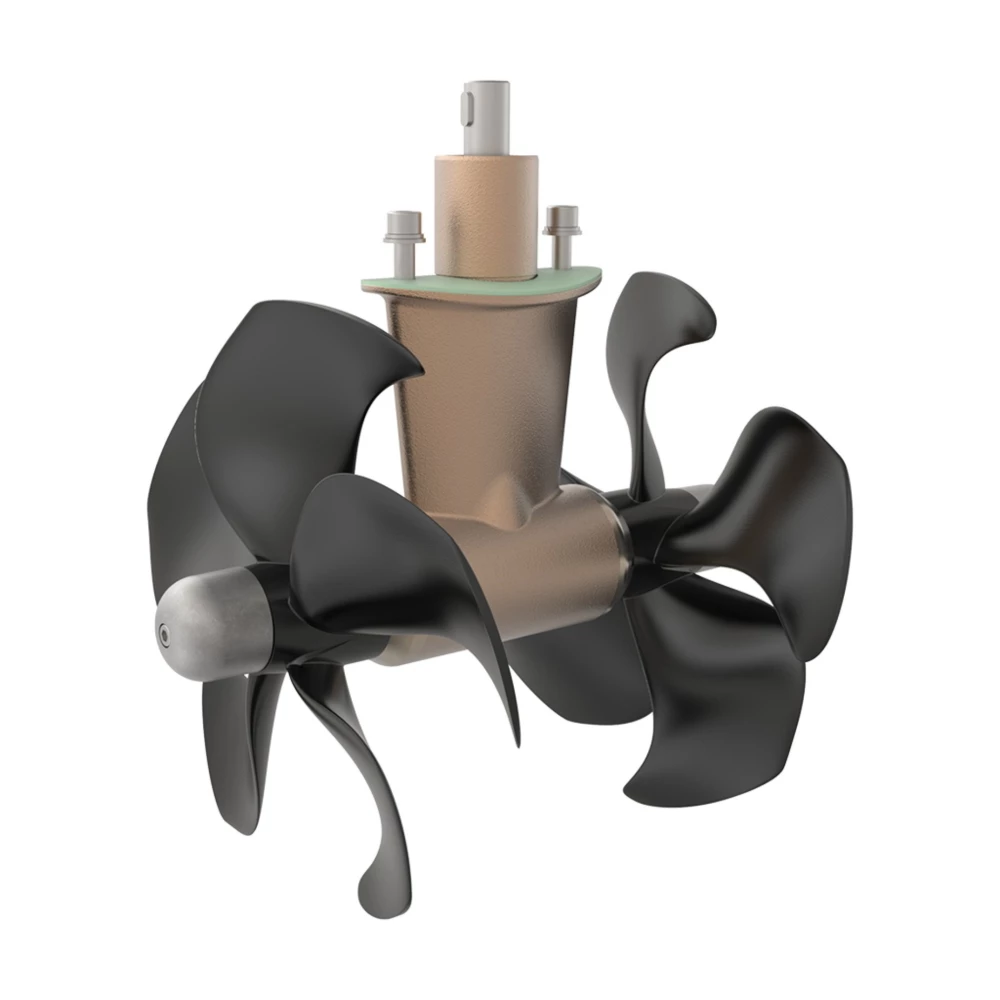

TWIN PROPELLERS

The twin propeller system can give more thrust than a single propeller system in the same tunnel diameter. This is Sidepower’s choice for Sidepower’s mid-range models where high thrust is required in a small tunnel diameter. Due to the compact design and high performance, the twin models have become the thrusters of choice among boat builders around the world.

Q-PROP

The new 5 blade special skew propellers are the result of over 2 years of development work and thousands of tests. They have been designed to reduce the noise level, while maintaining the exceptional efficiency of the old 4 blade Sleipner propellers. This goal was achieved, andSidepower even chose to make them a little bit more aggressive on some models, increasing the thrust on some thrusters about 5%. Please see individual information on each new thruster for more details.

Features:

• Noise reductions of up to 75% measured in controlled environments
• The expected and tested normal noise reduction in average installations: 20-40%
• Will be delivered on all Sleipner models except models with 300 mm and 385 mm tunnel diameter
• Upgrade kits are available for most SP series thrusters with special adaptors

Specifications:

Operational Intention	Value
Ideal Vessel Class	Commercial vessel, Motor boat, Sail boat

Material	Value
Constructed Material	Engineered Composite

Sparepart for	Value
PROPELLERS > FIXED PROPELLERS	4 9999
KITS > GEAR LEG KITS	4 0602
THRUSTER > ELECTRIC > DC > SE	SE60/185S-24V SE60/185S2-12V SE60/185S2-24V SEP60/185S2-12V SEP60/185S2-24V SE60/185S2-12IP SE60/185S2-24IP SEP60/185S2-12IP

Measurements	Value
(D) Diameter	179mm / 7in
(ID) Internal Diameter	185mm / 7.3in
