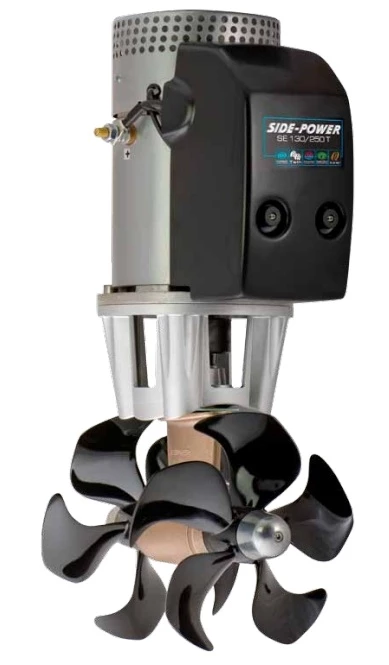

Side-Power SE130 Bow Thruster System 24v

Top quality bow thruster system

Built for outstanding performance, you can rely on your
Side-Power SE130 Bow Thruster System to help you
gain full control of your vehicle. As marinas get more crowded and
slips become tighter, docking your boat safely is more challenging
than ever before. Thrusters give you total control of your vehicle
and allow you to manoeuvre in and out of tight spots with ease and
actual control of your boat.

This heavy-duty Side-Power SE130 Bow Thruster
System offers the help you need to be in full control when
docking and departing, regardless of wind, conditions and currents.
It features a high-powered electric motor that’s made to achieve
maximum performance in real-life conditions while still keeping
weight, size and power consumption to a minimum.

The gear house is made of seawater-resistant bronze for optimum
protection from the elements. Its slim and hydrodynamic design
keeps water resistance and turbulence to a minimum. Trusted by
boaters around the world, you can’t go wrong with a system as
reliable as a Side-Power system!

Ignition Protected
To provide reliable and safe thruster installations in more boats,
Side-Power offers modified versions of the DC electric thrusters in
watertight housings for use in stern and other locations that may
get wet or be exposed to gasoline fumes. These thrusters are fully
ignition protected (ISO 8846) for use in boats with gasoline
engines. They have a hermetically sealed composite housing around
all electric parts. This provides the ignition protection as no
gasoline fumes can enter and be ignited by sparks.

Intelligent Power Control
This control provides delay between drive directions, monitors
solenoid functions to reduce the chance of solenoid lock-in. It
will also stop the thruster in case of a locked-in solenoid,
without extra user action and even without controlling a main
switch.

Twin Propellers
The twin propeller system can give more thrust than a single
propeller system in the same tunnel diameter. This is Side-Power’s
choice for mid-range models where high thrust is required in a
small tunnel diameter. Due to the compact design and high
performance, the twin models have become the thrusters of choice
among boat builders around the world.

Sealed Drive Lifetime Lubricated
Sealed gear leg with long-life “mechanical” seal where highly
polished ceramic and carbon surfaces form the only moving sealing
surfaces, ensuring protection against damaging water intrusion into
the gear leg. Pre-filled with special gear oil for lifetime
lubrication.
“Mechanical” seals with surfaces of ceramic and carbon for ultimate
security against water intrusion

Galvanic Separation
The gearhouse/drive legs of most Side-Power DC Electric thrusters
are now galvanically isolated/separated from the electric motor and
motor bracket. This ensures that even if there is an accidental
short circuit or a current leak for other reasons, the immersed
parts are not effected as they could be with direct electric
contact.

Q-Prop
The Q-Prop reduces noise of up to 75% measured in controlled
environments. The expected and tested normal noise reduction in
“average installations” is 20-40%. Upgrade kits are also available
for most “SP” series thrusters with special adaptors.

Side-Power SE130 Bow Thruster System 24v
Features:

• Ignition Protected
• Intelligent Power Control
• Twin Propellers
• Sealed Drive Lifetime Lubricated
• Galvanic Separation
• Q-Prop<

Side-Power SE130 Bow Thruster System 24v
Specifications:

• Thrust at 10.5V/21V: 130kg (284lbs)
• Thrust at 12V/24V: 160kg (352lbs)
• Typical boat size: 42-62ft (13-19m)
• Tunnel I.D.: 250mm (9.8in)
• Propulsion system: Twin
• Power at 10.5V/21V: 6.5kw (8.7Hp)
• For DC system (V): 12/24
• Weight: 37kg (77lbs)
• Minium Battery Capacity (CCA 12/24V): 750/400

What’s in the box:

• 1 x Side-Power SE130 24v Thruster
• 1 x Joy Stick
• 1 x Fuse and Holder
• 1 x 1.2m Tunnel and 9 Wiring Loom
