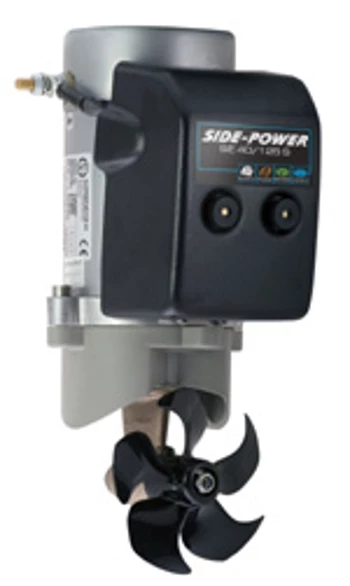

Side-Power SE40 Bow Thruster System 12v

Everything you need

The Side-Power SE40 Bow Thruster System offers you
total control of your vehicle and allows you to manoeuvre in and
out of tight spots with ease. As marinas get more crowded and slips
become tighter, docking your boat safely is becoming more
challenging. Built for outstanding performance, this
Side-Power SE40 Bow Thruster System will help you
gain full control of your boat.

This Side-Power SE40 Bow Thruster System is a
heavy-duty system that gives you the control that you need when
docking and departing, regardless of wind or current conditions. It
features a high-powered electric motor that’s made to achieve
maximum performance in real-life conditions while still keeping
weight, size and power consumption to a minimum.

The Bow Thruster System’s gear house is made of seawater-resistant
bronze for optimum protection from the elements. Its slim and
hydrodynamic design keeps water resistance and turbulence to a
minimum. Tested and trusted by boaters around the world, you can’t
go wrong with a system as reliable as this Side-Power SE40
Bow Thruster System.

Intelligent Power Control
Intelligent Power Control is Side-Power’s unique thruster
controller that intelligently protects the thruster from potential
inherent problems in all high-current applications as well as user
faults. It includes several important safety features imperative in
a product with such high power, run by DC electrics, as a
thruster.

Single Propeller
A properly engineered single propeller system will be the most
energy efficient thruster. Its compact design fits easily into
narrow bows. With more than 60,000 single propeller thrusters in
use, the Side-Power single series system has proven its
reliability.

Sealed Drive
Sealed gear leg with long-life “mechanical” seal where highly
polished ceramic and carbon surfaces form the only moving sealing
surfaces, ensuring protection against damaging water intrusion into
the gear leg. Pre-filled with special gear oil for lifetime
lubrication.

Side-Power SE40 Bow Thruster System 12v
Features:

• Intelligent Power Control
• Sealed gear leg with long-life mechanical seal
• Single propeller
• Q-prop

Side-Power SE40 Bow Thruster System 12v
Specifications:

• Thrust at 10.5V/21V* (kg • lbs): 40 • 88
• Thrust at 12V/24V* (kg • lbs): 48 • 105
• Typical boat size (ft • m): 26 – 34 • 8 – 10.5
• Tunnel I.D. (mm • in): 125 • 4.92
• Propulsion system: Single
• Power at 10.5V/21V* (kw • Hp): 2.2 • 3
• For DC system (V): 12
• Weight (kg • lbs): 10 • 22
• Min. batt. cap (CCA 12/24V): 300

What’s in the box:

• 1 x Side-Power SE40 Bow Thruster System 12v
• 1 x Joy Stick
• 1 x Fuse and Holder
• 1 x 1.2m Tunnel and 9 Wiring Loom
