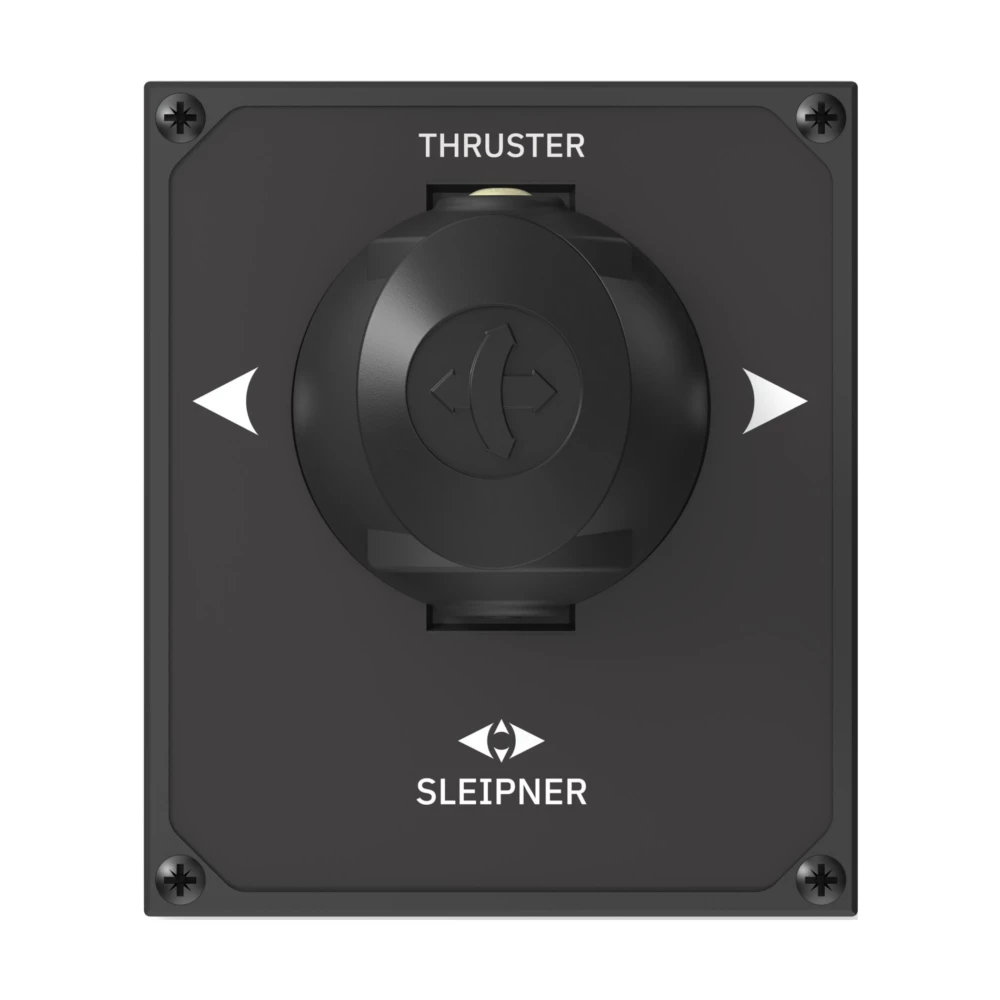

Side-Power Single Joystick S-Link Control Panel For Hydraulic Thrusters

Single joystick for hydraulic thrusters with variable speed control.

External LCD panel displays real-time information such as the amount and direction of thrust, remaining run time, oil temperature, and pressure read-out.

Features:

• Interactive multi-language menus
• Diagnostics via panel/computer interface
• CAN-bus communication with thrusters and accessories via S-Link
• Plug-and-go caples, sealed, and compact connectors
• Diagnostics via external panel
• Connector for external buzzer/loud audible alarms

Read more about the significant product features below.

Properties

DC ELECTRICAL CURRENT

Powered by direct current

SPLASH-PROOF

This product is manufactured for installations in environments that may experience moist or occasional splashes.

UV-PROTECTION

Constructed from UV-resistant material providing additional protection from the damaging effects of ultraviolet light from the sun.

ANALOG

Sleipner analog signal cables with plug-and-go connectors are color-coded to match the wiring diagrams with high-quality connectors to ensure a correct installation.

Specifications:

Power	Value
Operating Power	Electric
Power Requirement	12V, 24V

Operational Intention	Value
Ideal Vessel Class	Commercial vessel, Motor boat

Control Panel	Value
Operating Power Systems	Hydraulic Systems
Functionality	Proportional systems
Operates	1x Thruster
Operate Systems	Thruster Systems
Panel Color	Black

Measurements	Value
(H) Height	123.4mm / 4.9in
(W) Width	107mm / 4.2in
(a)	122.2mm / 4.8in
(b)	107.3mm / 4.2in
