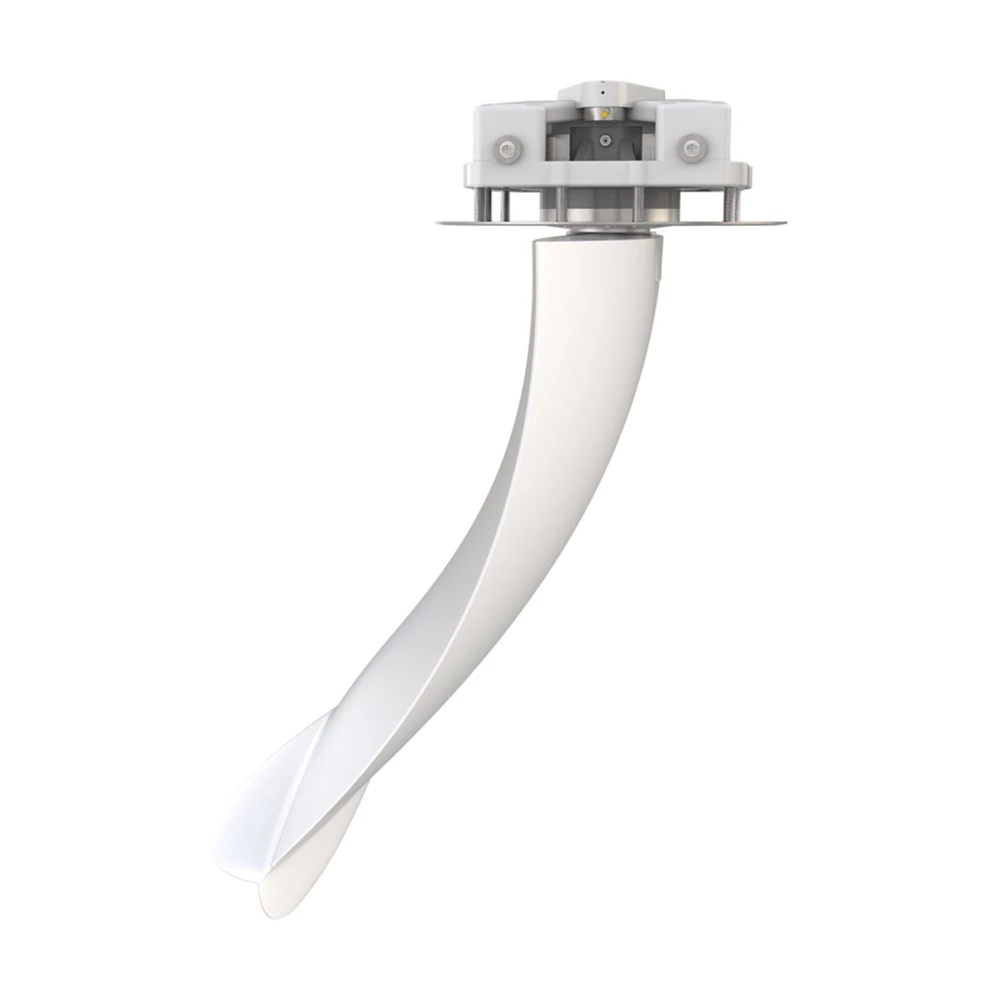

Side-Power Stab. Vector Fin Kit 08sqm 2 Pcs

Set of port and starboard Vector fins in size 0.8m suitable for boats between 55-70 feet.

The only top-performing stabilizer system for both cruising and at-anchor use. The fins’ unique shape reduces drag and improves fuel efficiency – translating more power into actual roll stabilization. Enhanced comfort and safety – with none of the drawbacks from flat fins.

Benefits

• Up to 50% more efficient than flat fins.
• Up to 55% less side-effects than flat fins.
• Advanced hydrodynamic fin design.
• 20% – 50% less resistance than other fins, results in virtually no loss of speed and thereby no added fuel consumption.
• All fins are prepared for high efficiency in any speed – 2:1 size ratio, also at anchor.
• The fins are made as a ‘one-shot’ vacuum injected vinylester process over pre-shaped core material in a closed mold method.
• Designed with rowing and math layers to ensure maximum strength and minimum weight. Can even withstand small damages without totally disintegrating afterward as traditional production methods often allow.

Properties

ANY SPEED

Sleipner’s Vector Fins unique curved design comes with many benefits to improve the stabilization of your vessel.

The concave shape of the Vector Fins creates multilateral force direction improving the stationary positioning of a vessel while at-anchor. Tests at sea have proven that Vector Fins are up to 50% more efficient than standard flat fin stabilizer systems providing a safer and more comfortable boating experience.

The uniqueness of the concave shape also becomes evident while underway and only improves effectiveness as speed increases. By redirecting water forces in multiple directions at sea, tests have shown the Vector Fins are capable of reducing the uncomfortable rolling motion of the vessel by up to 95%.

360 degrees INSTALLATION

These products are designed to fit in small and challenging installation areas. Planning your product placement in the past has been complicated by finding the space or rotation required for the product’s requirements. The unique cone shaft design allows you to utilize the space on board to install the actuators in any direction and insert the Vector Fins into the position you require.

SMART HULL PROTECTON

Sleipner Vector Fins design considers the safety of your vessel above all else. Breakpoints on the fin will make it collapse in the unfortunate event of hard contact to the stabilizer system. This results in significantly reducing any damage to the hull and actuator of your vessel that could lead to expensive out-of-water repairs.

PATENTED DESIGN

At Sleipner,Sidepower continually reinvest to develop and offer the latest technology in marine advancements. Often there is a void in the marine industry for a product to goes beyond the current market technology. ThereforeSidepower purposely develop and design innovative ways to not follow the industry but lead with revolutionary products. Patented products are unique one-of-a-kind designs available and sold exclusively by Sleipner.



VECTOR FINS

The Vector Fins is a unique patented design available only at Sleipner that dramatically improves roll reduction while simultaneously reduce yaw and sway motions caused by standard fin designs. Constructed with innovative layered vacuum injected vinyl ester compound covering pre-molded foam makes Sleipner Vector Fins lighter in weight than other fins on the market.

Specifications:

Operational Intention	Value
Ideal Vessel Class	Commercial vessel, Motor boat
Bow Capability	Yes
Stern Capability	No
Retractable Capability	No
External Mounting Capability	Yes

Vector Fin	Value
Size	VF800

Weight	Value
Weight	0 weight in waterkg / 0 weight in waterlbs

Measurements	Value
(H) Height	733mm / 28.9in
(L) Length	1395mm / 55in
(W) Width	337mm / 13.3in
(a)	1035mm / 40.7in
