Side-Power Thruster Propeller Diameter 250 Lh

Properties

PATENTED DESIGN

At Sleipner,Sidepower continually reinvest to develop and offer the latest technology in marine advancements. Often there is a void in the marine industry for a product to goes beyond the current market technology. ThereforeSidepower purposely develop and design innovative ways to not follow the industry but lead with revolutionary products. Patented products are unique one-of-a-kind designs available and sold exclusively by Sleipner.



Q-PROP

The new 5 blade special skew propellers are the result of over 2 years of development work and thousands of tests. They have been designed to reduce the noise level, while maintaining the exceptional efficiency of the old 4 blade Sleipner propellers. This goal was achieved, andSidepower even chose to make them a little bit more aggressive on some models, increasing the thrust on some thrusters about 5%. Please see individual information on each new thruster for more details.

Features:

• Noise reductions of up to 75% measured in controlled environments
• The expected and tested normal noise reduction in average installations: 20-40%
• Will be delivered on all Sleipner models except models with 300 mm and 385 mm tunnel diameter
• Upgrade kits are available for most SP series thrusters with special adaptors

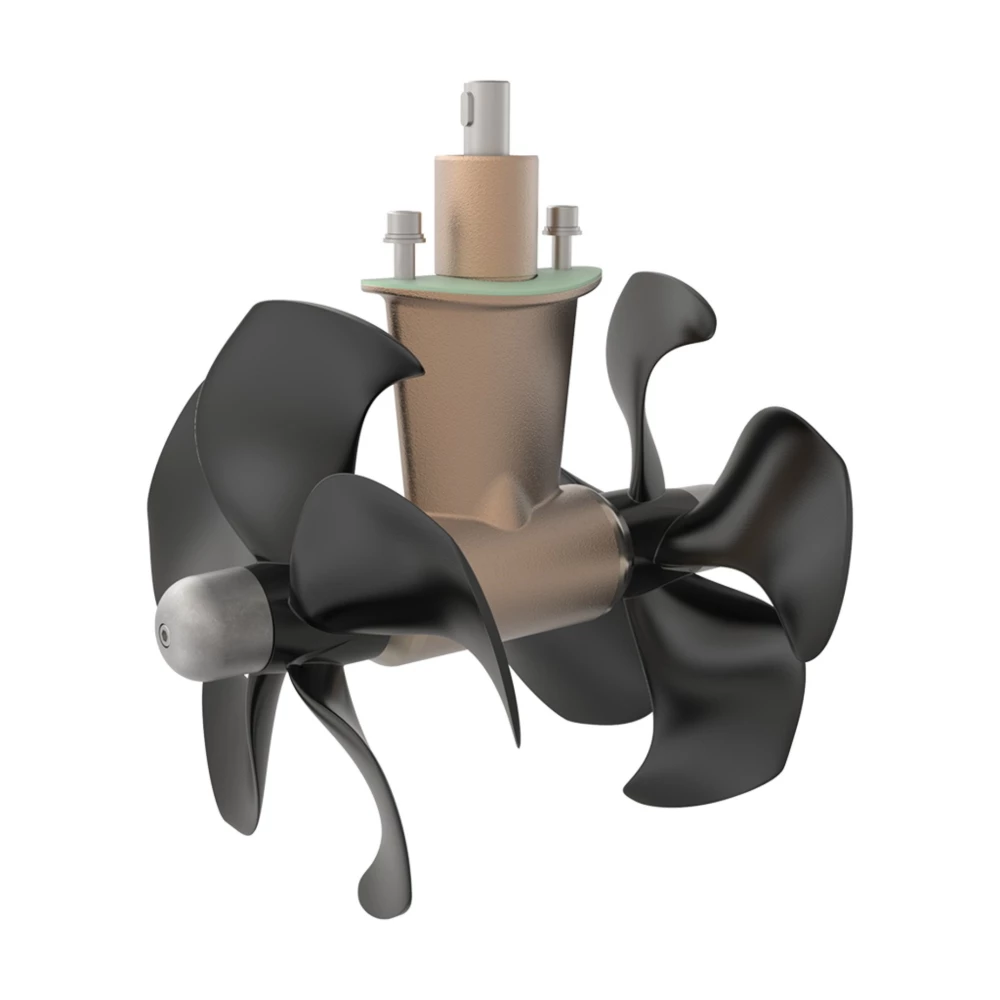

TWIN COUNTER-ROTATING PROPELLERS

Two counter-rotating propellers can give the most thrust at a good performance ratio in a minimal tunnel diameter. This system is used in Sidepower’s larger thrusters for maximum power. The TC models are the favourite thrusters among leading boatbuilders for their high-end yachts.

Specifications:

Operational Intention	Value
Ideal Vessel Class	Commercial vessel, Motor boat, Sail boat

Sparepart for	Value
KITS > GEAR LEG KITS	13 0602 13 0603
THRUSTER > ELECTRIC > AC > SAC	SAC240/250-C-21-V SAC240/250-C-2-H SAC240/250-C-2-V SAC240/250-C-4-H SAC240/250-C-4-V SAC240/250-C-4L-H
THRUSTER > ELECTRIC > DC > SE	SE170/250TC SE170/250TC-IP SE210/250TC SEP170/250TC SEP170/250TC-IP SEP210/250TC
THRUSTER > HYDRAULIC > SH	SH240/250TC-U08 SH240/250TC-U10 SH240/250TC-U11 SH240/250TC-U14 SH240/250TC-U16 SH240/250TC-U19
THRUSTER > ELECTRIC > DC > SR	SRLP170/250TC SRL170/250TC SRV170/250TC SRV210/250TC SRL170/250TC-IP SRVP170/250TC SRVP210/250TC
THRUSTER > HYDRAULIC > SRH	SRHP240-G11-24V SRHP240-G14-24V SRHP240-G16-24V

Measurements	Value
(D) Diameter	244mm / 9.6in
(ID) Internal Diameter	250mm / 9.8in
